SL60

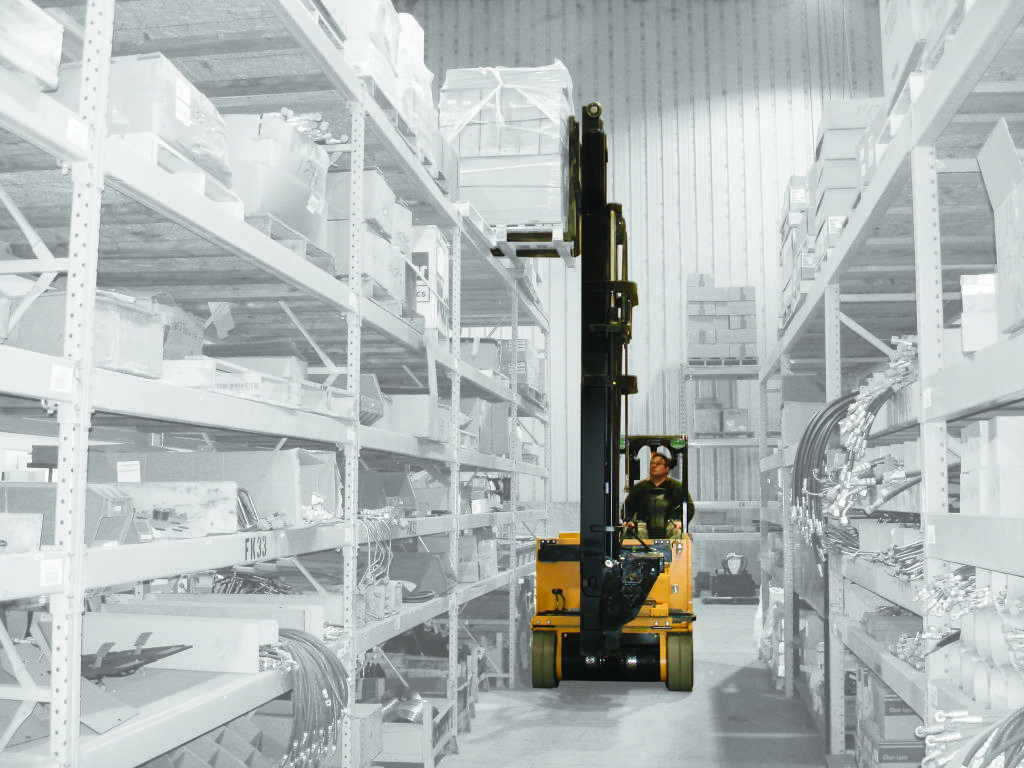

The Drexel model SL60SE and SL80SE are high capacity SwingMast® models that work in aisles as narrow as 66″ (1.7M), have a basic capacity of 6,000 lbs. (2727kg), and up to 8,000 lbs. (3636kg) at 24″ (600mm) load center and have lift heights available to 289” (7.34M). The SL60SE and SL80SE are 4-Wheel SwingMast® VNA and Side Loading forklifts with independently driven front wheels and dual rear steer tires. The front mast rotates 90°, has side shift of 30” (762mm), allows easy stacking in Very Narrow Aisles. Both can work inside and outside on paved surfaces and can perform the jobs of high capacity front loading and side loading forklifts including working in bulk storage, cantilever rack, push-back rack, double deep and climbing steep ramps. The SL60 and SL80 range does the jobs of reach and counterbalanced trucks in aisles over 40% smaller. The ability to store and transport heavy long loads as a side loader increases versatility and maximizes utilization.

  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Dual Joysticks Control all Hydraulic Functions
  • Hydrostatic Power Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • Adjustable Suspension Seat Improves Operator Comfort
  • Large Battery Compartment Allows Maximum Battery Capacity for Long Run Times
  • High Visibility Mast Allows Optimum Safety and View of Loads and Forks

Additional model available SL80

Request A Quote

Specifications

Product Information

Model Year
2020
Model
SL60

Dimensions

Length
105
Width (in)
52
Height (in)
90
Weight
18700
Wheel Base
56

Engine & Drivetrain

Engine Type
electric
Tires
cushion
Maximum Travel Speed (mph)
6.9 (Loaded) / 7.7 (Unloaded)
Maximum Lift Speed Full Load (fpm)
55(Loaded) / 70(Unloaded)
Maximum Gradeability (%)
15

Operational

Capacity (lbs.)
6000
